Please note: This guide gets updated, please check back in for regular updates.


1. Printer Components


The Gizmo 3D Printers come in 3 different sizes with different add-ons and accessories.

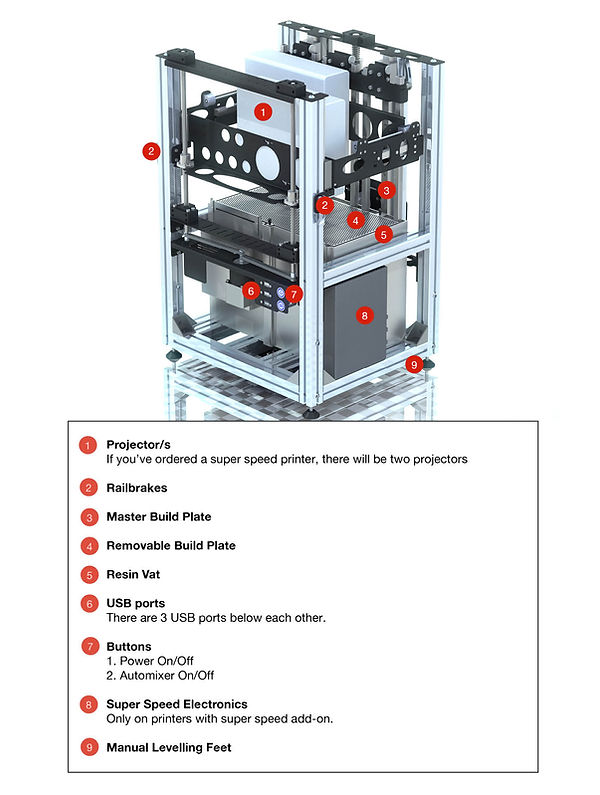

The illustration below indicates the basic components that each printer has:


2. Prepare your workspace


Your workspace should have the following tools and consumables at the ready for when you need them:


  • Flat tool for removing parts from the build plate (eg. scalpel or filling trowel)

  • Plastic gloves (you should never handle resin with your bare hands)

  • Resin

  • Resin pump

  • Paper towels

  • Isopropal alcohol; for cleaning purposes

  • A size 2.5mm hex/Allen key; used for securing your projector(s).

  • Laptop/PC - You will need a computer with at least 4GB of memory. The more memory you have, the better, especially when printing large objects.  If you want to start using the large build plate and place many objects on the build plate, you will may need to upgrade to 16GB or even 32GB of memory. 500 rings with 500,000 faces each will need a lot memory to slice.

  • A resin mixing tool. A hand-held mixer can be used or a fork/spoon or even a power drill mounted paint mixer.

  • A suitable place to dispose of waste (ie. bin)

  • UV glasses if your machine has a UV projector - tinted ones seem to be safer. You can test how effective your glasses are by seeing if a bit of resin placed under the glasses hardens in the sun as it shines through it.


3. Install Java & Gizmetor


You can download and install the latest version of Java 8 64-bit from:

http://jdk.java.net/8/


If you are not sure what version of Java you have, open a command prompt (press Win+R and type 'cmd' into the text box and click 'ok') and type in the command 'java -version'.



You should see something like the text in blue below:

Java version "1.8.0_102-ea" (or higher)

Java(TM) SE Runtime Environment (build 1.8.0_76-ea-b04)
Java HotSpot(TM) 64-Bit Server VM (build 25.76-b04, mixed mode)




If the last line states that it is a '64-Bit Server', you are good to go.




If you already have another version of Java installed, the newer installation will automatically overwrite the older version.




Download the latest version of Gizmetor software


If you have not received a link to download the software, please contact us and we will resolve the issue as quickly as we can.

Click on the link provided and then click on the Download button. Save setup.exe to your computer where you will find it again. Double click on setup.exe and follow the prompts.



4. Unpacking your printer



Note:

Resins, and occasionally projectors, will be shipped separately to prevent damage to your printer while in transit. The printer should arrive in a wooden crate.



Packaging

  1. Place the printer box on a stable surface on the floor which will provide the best accessible position for unpacking. Ensure you can easily access the crate from all sides of the box while unpacking.

    Inside the box you will find:

  • Your new printer

  • 1x Hand pump

  • 3 x Universal cables

  • 1x HDMI cable

  • 1x USB cable

  • 1x DC power supply

  • 4x Printer feet

  • 1x Heater power cable

  • Any additional add-ons you ordered



It is helpful to have a second person around helping with the setup as some of these tasks can be challenging when undertaken alone.

Position your printer in or very near its final location. For your safety, ensure you have easy access to the front and rear of your printer for the setup process. You must keep your printer away from any sources of bright light or UV (eg sunlight) as this can cause your resin to prematurely set and make printing impossible.

For maintenance purposes; ensure you have unobstructed access to the front and/or sides of your printer while it is at its 'final' location.

Please ensure that your printer is switched off at this stage by pressing each of the two buttons on the front panel and checking they are not depressed.

Very important:  The printer is shipped in a way to keep it safe in transit.  We use big white cable ties that should be removed.  Please remove all the big white cable ties before trying to move any axis.


The following steps are based on this video: https://youtu.be/Gn6lBjlhkW4   (Please watch the video)



Back of the printer

  1. Insert a power cable into the left power input and the other end of this cable into your wall socket, this will power your projector. If you have a heater pad add-on, the second power cable will go into the right input. This is to power the heating pad, do not insert this into the wall yet.

    Caution! Do not plug in the heat pad's power cable (inside the vat) if the heat pad is not covered with resin. This can cause the pad to over heat and become a fire hazard. It is also strongly advised that you do not use this port if you do not have this add-on.


  2. The right circular input is the 12 volt power supply for your controller. Insert the circular plug from the power brick into this slot

  3. If your printer has the super speed add-on installed, you will have an electronic device that will have its own power cable (please note: this device only comes with an American plug).




Front of the printer

  1. Insert the USB cable into the center input on the front panel of the printer and the other end of the cable into a USB port on your PC or laptop.

  2. Insert the HDMI cable into the bottom input on the front panel of the printer and insert the other end of the cable into an HDMI port on your PC or laptop.

  3. You may now move the printer to its final location.



5. Installing your projector/s (if applicable)



  1. The projectors attach to the printer using three M3 bolts.

  2. Insert 3: M3x12mm bolts into the 3 small holes on the bottom of your projector by hand, 3 full turns should be enough.

  3. The holes in the projector plate are designed to allow the bolt heads to slide in the larger holes and slide across to lock the projector in place. Line up the 3 bolts with the holes in the projector plate, slide the bolts through and across so that the bolts support the projector.

  4. Tighten the bolts firmly.

  5. If you have the super speed add-on; repeat step 1 and install the projector onto the back plate sliding plate instead of the front plate. This is to be installed on the front face of the plate (the side of the plate nearest to the user) so that the projectors can be aligned.










Click here for a blog on how to install the build plate and vat.

Click here for instructions on how to install the vat heater.




6. Filling the vat with resin





  1. Raise the projector plate to the top of the rail and while supporting the projector plate, loosen the screws of the left projector stopper so that the stopper can slide, DO NOT remove the screw as the nut inside the T slot extrusion can go missing inside your printer.

  2. Slide the stopper all the way up until it makes contact with the bottom of the projector plate and tighten the stopper screws so that they support the projector plate.

  3. Ensure that your vat is free of dust before placing it into the printer.

  4. Put on your gloves!

  5. Using the pump that comes with your printer, place the straight pipe of the pump inside your resin bottle and the corrugated pipe inside your vat, it is advised you hold onto the corrugated end as the force of resin being pumped out can cause the tube to jump out of the vat. Squeeze and release the red bulb of the pump to pump the resin into the vat. Continue until resin starts to pour into the overflow.



Next switch on the projector/s using the remote controls and press the on/off button of the printer.


 7. Finding a model to print



You don’t have to create your own 3D models from scratch. Instead you can obtain models in any of the following ways:

  1. Scanning

  2. Downloading an existing model from websites such as Thingiverse.com, GrabCad.com or yeggi.com.



Should you want to create your own model - here’s some suggestions for software:

Suggested software for beginners:

  • 123D Catch

  • Tinkercad

  • 3DTin

  • SketchUp

  • OpenSCAD


Sculpting apps:

  • 123D Sculpt

  • forger


Software for experienced users:

  • Industrial CAD

    • Solidworks

    • AutoCad

    • and more

  • Professional 3D modelling

    • Cinema4D

    • Maya

    • Blender

    • and more



Preparing and assessing your model


Ensure your 3D model is suitable for 3D printing. Your 3D model needs to be a solid, manifold ("watertight") 3D model, saved in the STL file format.


If your print contains any overhangs (a part that extends over empty space) you may require supports. At Gizmo 3D, we use Autodesk Meshmixer to add supports to our models.



CLICK HERE for a tutorial video on how to use Meshmixer.




8. Import your model into Gizmetor Software

Run Gizmetor





Go to C:\Gizmo3DPrinters

Double click on Gizmetor to start up Gizmetor. It will try to connect to the internet to check if you have the latest version of the software.

If you choose to execute GizmetorNoUpdate it will not try to connect to the internet to check for updates.


All the bat files that run Gizmetor are located in C:\Gizmo3DPrinters\bat.  If Gizmetor doesn't start and it has the error that you don't have enough memory on your PC, you can edit the corresponding bat file and change the memory required.


Note: There are 2 parts to the Gizmo 3D Printers software (both are downloaded at once):

1. Gizmetor - Slices your 3D objects into .gizmo files.
2. GizimetorPrint - Operates the printer and converts your .gizmo files into a gizmo!


For now, we are going to work with Gizmetor which when launched, will ask you to
Select a printer and material




If your printer or material is not in the list, you will be able to manually add it by following a future tutorial.



For now select one of the printers in the drop down and a material (or contact us to create a profile for you).  If you are just following this tutorial to learn more however, having the exact type of printer selected is not essential right now.


Add From File System





Select an STL file from the file system by clicking on the "Add From File System" label at the top left of the screen.



Go to a directory on your computer that contains STL files that you have access to and open one. Gizmetor will load the STL and create the object in the 3D world.


9. Start Slicing





Start the slicing workflow by clicking on the "Slice All" label at the top right of the screen. The Print Settings screen will open.


Print Settings



The Print Settings screen will populate the Filename field with the names of the objects in the 3D world.  It has a limit of 200 characters for the name.  You can change the name yourself if you want to.



Print Quality

Changing the print quality will change the Z layer height.  Medium is set to 50 micron and is a good default layer height to print with. The majority of resins can print at 50 micron Z.



Different resins will have different maximum and minimum layer height.  For instance, the jewellery resin from Vitang has an ideal layer height of between 10 mcron and 30 mircon. The Deep Black resin from FunToDo prints best at 50 micron. 50 micron is a good starting point if you are unsure what layer height is ideal for your choice of resin.


​Profile

The list of profiles in the drop down is read from the profiles associated with the material. You can add more profiles by going to the Profile manager tab on the left side of Gizmetor. The profile will give you defaults values to print with. These values can then be changed in the Override manager.



Layer height

When you change the Print Quality drop-down this value will also change. You can also enter your own value in the field.



Solid (checkbox)

Checking the checkbox will display the Solid settings.  Unchecking the checkbox will display the Hollow settings.




- Solid (checked)

Solid wall thickness:
We normally don't change the value from 0.05.  This will make the line around layers thicker.  It can be used to close gaps.




Wall margin:
This is mostly used when printing jewellery.  This will create a red line around a layer.  It opens up gaps.  This can be used to compensate for bleed.

- Solid (unchecked)

Hollow wall thickness: This will make the lines of the layer thicker or thinner.



0.3 is a good starting value.





Infill width
The default width for the honeycomb infill.  Smaller will use more memory and cause more surface tension and more blow-out.  Between 4 and 8 seems to be a good value.





Infill height

The default height for the honeycomb infill.  Smaller will use more memory and cause more surface tension and more blow-out.  Between 4 and 8 seems to be a good value.




Infill wall thickness
The thickness of the honeycomb.  The default value of 0.08 seems to work well.  Bigger values will make the honeycomb thicker and stronger, but it will cause problems with continuous printing and blow-out.  If the honeycomb is thicker than the outer walls the resin will rather go through the outer wall than through the honeycomb





Click on Next to show the Preview Manager



Preview Manager


Features of the Preview Manager includes the Override Manager and the Support Manager.



Override Manager

The override manager allows you to override many settings that are related to the print. For this tutorial, delete all overrides if there are any in the list.





True View

When clicking True View it will display the layer as if it was being displayed via the projector using the same scaling and same infill pattern.

You can slide through the bar at the top of the screen to see the different layers of your object.



Click Next go to to the Slicing screen

Slicing

The slicing screen is used to create slices of the 3D objects. When you slice an object into layers, the layers are saved in what we call a .gizmo file.

The options available to you and their functions are as follows:


Slice and Package

The Slice and Package button will generate slices and package them into a .gizmo file.


Package Only

Choose this option if you have already sliced before. You can drag a .gizmo file into the 3D world.  If you then only change overrides in the Override Manager all you need to do is click Package Only on this screen.  Package Only will create a new .gizmo file.  It will not slice again. If slicing is required, click on the Slice and Package option instead.  This is a quick and easy way to change overrides.




Force PNG generation

The option to Force PNG generation is always checked on. This will create a PNG file for each layer.



Click on the Slice and Package button.



Gizmetor should run through all the layers very quickly and then generate a .gizmo file.  It will combine all the objects in the 3D world into a single STL file and include that in the .gizmo file.





Now switch on your projector/s with the remote while holding a piece of paper or your hand under the lens to block any light from the projector shining onto your resin. Block the light until you are able to project any image from the projector in red (explained later in this tutorial - see Display calibration in red).


Click on Start GiziPrint to move onto the next step.



(Always switch on your projector/s before starting GiziPrint!).  Your PC will need a second monitor for this to work correctly or your PC will need to be connected to the projector that is on. The projector needs to be on for this step (otherwise it won't work).

10. Start Printing



Run GiziPrint





GiziPrint can be started by clicking on the Start GiziPrint label in Gizmetor after slicing has been completed or by going to C:\Gizmo3DPrinters and double clicking on GizmetorPrinter or GizmetorPrinterNoUpdate.  The same information regarding starting Gizmetor and GizmetorNoUpdate applies to GiziPrint.



If you start GiziPrint from Gizmetor it will auto populate the file name on the file selection screen.



Printer port

If the PC is connected to the printer then one of the ports in the list will be the port of the printer. There is no way to know which port the correct port is. Try each one, other than Com 1. If you select None, GiziPrint will start the emulator internally. None is good to test a print without moving the printer. Make sure the Connect button changes to Disconnect after clicking it once. If it doesn't, it means the connection wasn't successful.

If the connection wasn't successful, press Alt+tab to the access black command window to look for an error. You can also see a log of what could have caused the error by clicking on the Manual Control tab.

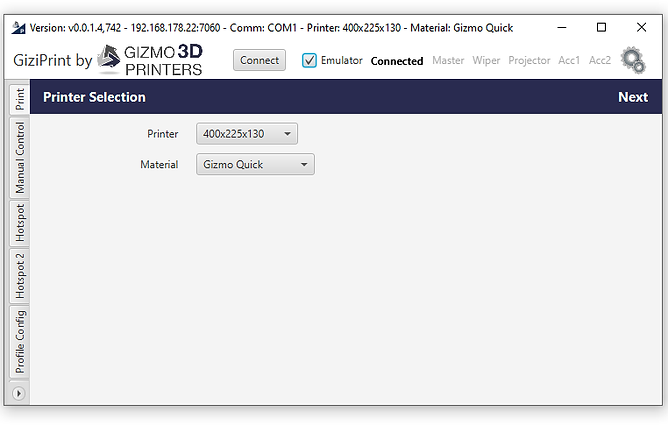

Printer

Select the correct printer that you are using. This is very important to choose the correct printer. If you choose a printer that has a very tall build height, but your physical printer has a very small one the build plate might move too far up or down and damage the printer. Other things that move, e.g. automated projector and wiper, could also possibly move too far and cause damage.



Click Next to go to the File Selection screen


File to be printed





If you started GiziPrint from Gizmetor the filename should already be populated. If it isn't, you can find the .gizmo file by clicking on the Select file button and then browsing to the recent folder. Select the .gizmo file and click Open.


It is possible to load many .gizmo files and they will be printed one after the other. This is useful for mass production or if you want to print a huge STL that couldn't be sliced as a single STL. Split the STL into smaller STL files using Netfabb. Slice and package each one and then load them in GiziPrint to be printed one after the other.




Click Next to go to the Gizmo File Information screen.

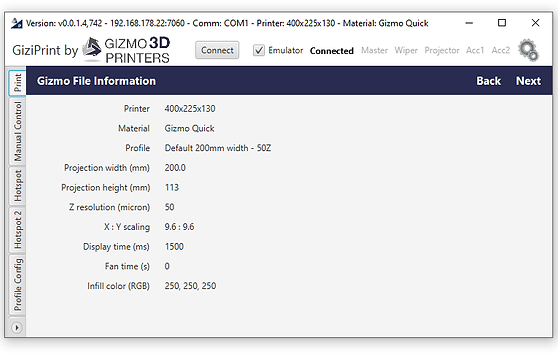

Gizmo File Information





This screen is a work in progress.  It displays information regarding the .gizmo file.



Click Next to go to the Calibration Settings screen


Calibration Settings





Calibration image

Select which of the following image options you want to use to calibrate:
Layers of your print, 30mm square or Calibration Grid:



Layers  (of your print)
One layer of the object will be displayed. It is a good habit to check every 100 layers or so to ensure everything fits correctly and is of the correct size.


30mm square
It is good to display this square to make sure the scaling is correct. You would measure the square when it displays on the resin - it needs to be exactly 30mm x 30mm.



Calibration Grid
This option is normally used to calibrate multiple projectors.



Layer number

This allows you to select a specific layer of your print to display when you click on "Display Calibration in white/red"



Display calibration in white

Displays a 2D/layer in white.  White will harden the resin.  It is a good idea to display the first layer for a while to create a solid base for the print. Test the the grip of the printer with a scalpel but take care not to cut the layer off of the build plate.



Display calibration in red

Displays a 2D/layer in red. Red will not harden the resin.  You might want to show the layer to see if its outlines display outside of the build plate or if it is fully inside the projection area.



Hide calibration image

Hides the image that is currently displaying.



Dip Test

Used to move the build plate down and back up again as per the distance that was configured in the profile.  It's useful for coating the build plate with resin or to see if the build plate will actually dip far enough to coat a large printed part fully. For instance, if you are printing and the object that is being built doesn't dip enough to coat the entire top layer, it might result in print inconsistencies.



Build plate

The numbered buttons will move the build plate up and down or home it. DO NOT PRESS HOME as it may damage the printer if not used correctly (as per the upcoming, advanced tutorials).  The printer should always move the build plate back to the position it was in before the print started.



Caution:

When lowering the build plate into the vat keep your finger close to the power button. We've had cases where users didn't have the build plate centered above the vat when they moved the build plate manually. The build plate crashed into the vat and severely damaged the printer. It is strongly advised that you move in 10mm increments when the print is above 30mm, then align the vat with the build plate from all sides and carefully lower the vat at 1mm increments while checking the alignment from all sides until the build plate is inside the vat. Even after this, you should check to see that the build plate is not making contact with the vat as scraping between the vat and build plate will dramatically degrade the quality of your print.
Do this every time the build plate leaves the
vat as any small adjustments while the build plate is outside the vat can lead to a critical failures when being replaced.

Do a dip test to make sure the build plate is coated with resin.

Move the build plate up to just above the overflow. Fill the vat with resin until it overflows and move the build so the resin just almost reaches the top surface of the build plate. You should see little sparkles from the holes in the build plate.  If you don't see sparkles it means the build plate is too low.





Display the first layer using the "Display calibration in white" button. You might need to display for 30 seconds to a minute to make sure the part sticks well to the build plate and bridges all holes. Test that the first layer was created correctly. We use a scalpel and do random tests by pushing against the layer on the build plate.  Please note: Don't cut the layer off the build plate. Just push against it to make sure it is stuck.


X Offset

Move the image up or down using these buttons.  The part might be falling through holes in the build plate.  Move it to a better position.



Y Offset

Move the image left or right using these buttons.  The part might be falling through holes in the build plate.  Move it to a better position.

Click next when you are ready to start your first print



Printing





This screen will give all the details regarding the print and override some settings. Please note: You can only override settings here if the settings are not being overwritten in the Override manager.



Recalculate print time

When changing the settings in the Display section.  Click this button to update the print duration.



Start

Starts the print



Stop

Stops the print



Repackage gizmo file

If you changed the settings of the print and the print worked out well, click this button.  It will repackage the .gizmo and create a new .gizmo file and store it in the recent folder.  You can then reuse that file in the future and reproduce the print easily.



Display settings:

Dip depth

How deep the build plate will dip to coat the previous layer.



Pause after build plate down

When printing at standard speed, the build plate moves slightly up and down during printing. This option determines how long the build plate pauses before coming back up, once it's moved down.


A longer pause means that the resin will have time to coat the full build plate. If you are learning how to print with a new resin it is recommended to pause for longer.



Pause after build plate up

When printing at standard speed, the build plate moves slightly up and down during printing. This option determines how long the build plate pauses after coming back up.

A longer pause means the resin will have more time to stabilize after a dip. If you are learning how to print with a new resin it is recommended to pause for longer.



Display time

This is how long the image will be displayed for it to harden the resin. If you were to display for too long, it will 'cook' the resin and cause the print to fail. Too short of a display will result in layers failing to form. Also, when printing parts with small clusters of pixels in an image, it will need longer display times. Parts with large clusters of pixels will need less display time. Eg. a solid square, will need less display time for resin to set, where as the fine outline of a square will need a much longer display time for adequate resin to set.





Pause after display

The resin will take a few milliseconds to cure after it has been hit by UV. If you are learning how to print with a new resin it is recommended to pause for longer.



Save settings to config file

If you change settings it is always a good idea to save the config file. Each time you click the back button to go back to the calibration screen and come back to the print screen the settings of the print will be reloaded. Saving the settings means you will not lose any changes to the settings.




Click the start button to start the print.



What to look out for when printing

If you notice the dip isn't deep enough for the print, stop the print.  Change the setting and start again.



If you are printing with a new resin, stop the print after 20 or 30 minutes and see if it is printing. If nothing has formed, the display time is too low, increase the display time.  If it looks like bubbles formed on the part, the display time is too long and you are cooking the resin.  When that is the case, smoke normally comes out of the vat.  Reduce the display time.  Remove the previously printed part and start again.



If the resin is still moving while the image is being displayed increase the pause times.



When the print is done and there is gunk around the print or on the build plate, it means the brightness setting of the projector is too high. Reduce the setting and print again.



Flat surfaces need to be angled to be printed smoothly or you will need to hollow the part and only close the last 2 layers using the override manager.
